Eurostage 2620 Banner Dimensions

What You Need to Know

If you’re planning a concert, festival, community event, or corporate show in Arizona, you already know that a mobile stage isn’t just a platform for talent—it’s the visual center of your entire event. Get the stage branding right, and your sponsors look like rockstars. Get it wrong, and you’re looking at wrinkled vinyl, sagging headers, or worse: a safety hazard that has to come down mid-event because of high winds.

At C West Entertainment, we run professional EuroStage ES-2620 Mobile Stage Rentals in Arizona across the Southwest. We see event planners and graphic designers make the exact same banner sizing mistakes all the time.

The bottom line? The EuroStage ES-2620 supports two primary banner setups depending on your rigging config:

With 5′ Fly Bay Kit + Banner Kit: $37' \times 3'$ Top Banner paired with $5' \times 14'$ (or $15'$ ) Side Banners.
Standard Setup (Banner Kit only): A $27' \times 3'$ Top Banner.

Below is the complete, down-to-earth guide on every exact dimension, material specification, grommet placement, and wind-safety rule you need to get your stage artwork printed correctly the first time.

The EuroStage ES-2620 Banner Dimensions Breakdown

Before sending artwork to your printer, you need to know whether your stage setup includes audio fly bays (PA wings). Fly bays extend the visual footprint of the stage and change the required header width

Top Banners (Headers)

▪️With 5′ Fly Bay Kit + Banner Kit: 37′ wide x 3′ tall
▪️Standard Setup (Without Fly Bays): 27′ wide x 3′ tall

Pro Tip from Our Crew: If you aren’t sure whether your event package includes fly bays, ask your production vendor before printing. A 27-foot banner on a 37-foot span leaves awkward gaps on either side, while a 37-foot banner on a standard stage won’t fit at all.

Side Banners (Banners Flanking the Stage)

▪️Dimensions: 5′ wide x 14′ tall (or 15′ tall depending on clearance needs).
▪️Requirements: Side banners require both the 5′ Fly Bay Kit and the Banner Kit.

Note on Rigging: The ES-3322 / ES-2620 Fly Bay Kit requires a lower angle brace on the vertical fly bay post to properly fly side banners.

Print & Material Specifications: Don't Sail Your Stage Away

Designing for a stage is not like designing a trade show backdrop. Mobile stages are engineered structures subject to wind load limits, High Wind Action Plans (HWAP), and engineering certifications (like Clark Reder Engineering guidelines).

Mesh Ratio: $70/30$ vs. $30/70$

Solid vinyl banners act like giant sails in Arizona gusts. Never print solid vinyl for EuroStage mobile stage headers or side banners. Always use single blow-through mesh.

Standard Weather Conditions: Use 70/30 blow-through mesh ( $70\%$ , $30\%$ airflow). This offers full color saturation while letting wind pass through safely.
High-Wind, Mountain, or Coastal Locations: Use 30/70 blow-through mesh ( $30\%$ surface area, $70\%$ airflow). If you are hosting an event in windy areas like Northern Arizona or high-altitude passes, this is essential to keep the rig compliant with wind safety protocols.
Golden Rule: Always use a single blow-through mesh banner. Do not double-layer or combine multiple banners over each other, as this destroys airflow.

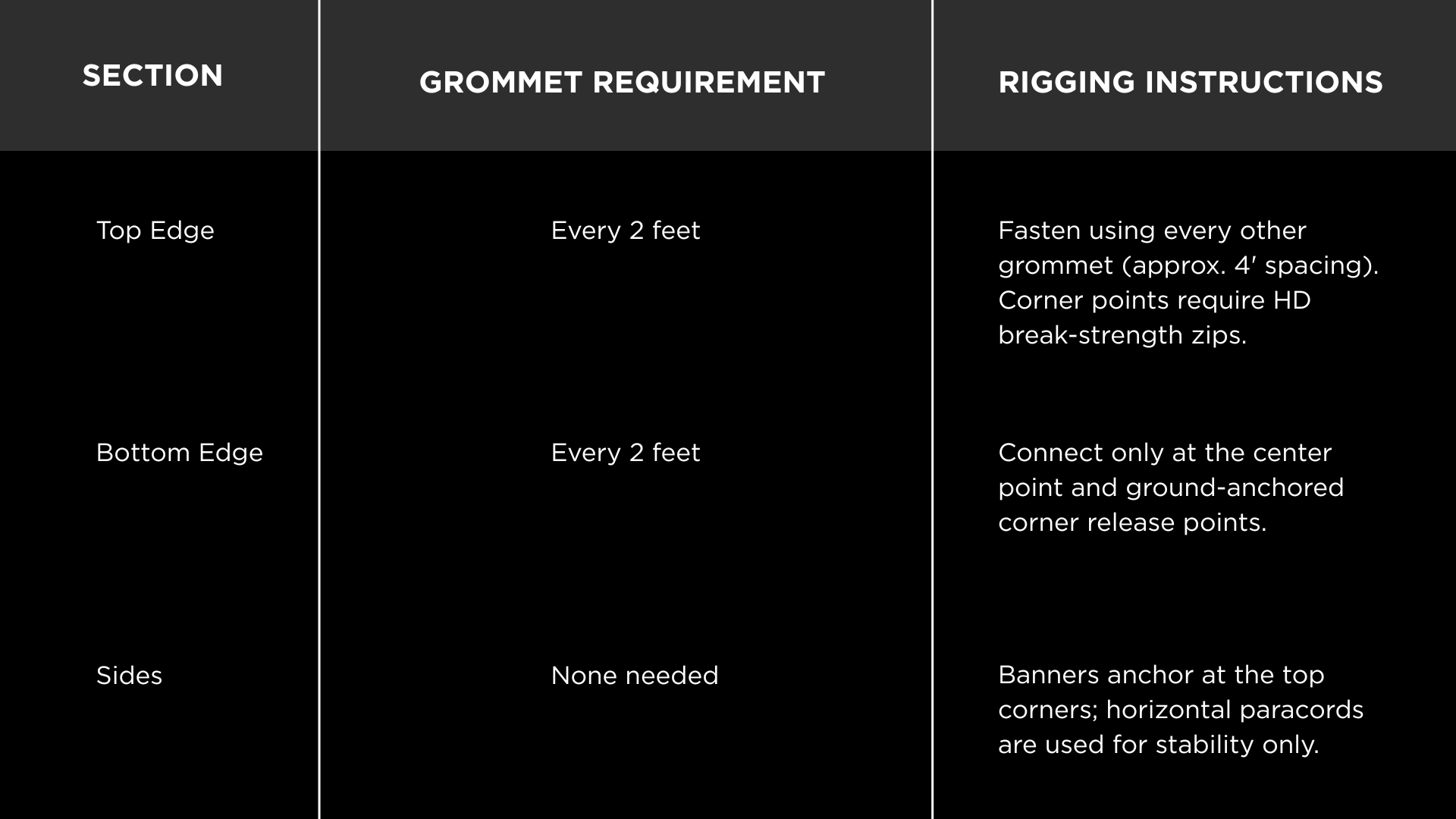

Grommet & Rigging Specifications

Even a perfectly sized banner will sag or tear out if mounted incorrectly. Print shops need to follow these exact grommet placements:

Rigging & HWAP Safety Quick-Check

Top Corner Attachments: Secure the top 2 corner points with Heavy-Duty (HD) break-strength zip ties. Connect top banners directly to the 4 end banner post eyebolts.
Bottom Release System: The bottom edge of the top banner must be able to be released quickly in the event of high winds under HWAP guidelines. Attach the bottom two corners using minimum break-strength zips or paracord anchored near ground level for fast manual release.
Side Banners: Connect the top of side banners to the Banner Offset Bar using HD zip ties. The lower section must remain quick-releasable for HWAP compliance.

Why These Rules Matter for Your Event

We’ve seen it all on site—from sponsors providing low-resolution JPEGs to printers omitting grommets or sending solid 13oz vinyl. When wind picks up, safety always comes first. If a banner doesn’t comply with HWAP engineering standards, stage techs are required to cut or drop the banners.

Following these specs guarantees that:

Your sponsor logos look crisp, taut, and professional.
Your production team stays fully compliant with local safety and engineering codes (Clark Reder Engineering standards).
You avoid last-minute delays or having to drop your branding mid-festival due to unexpected wind.
